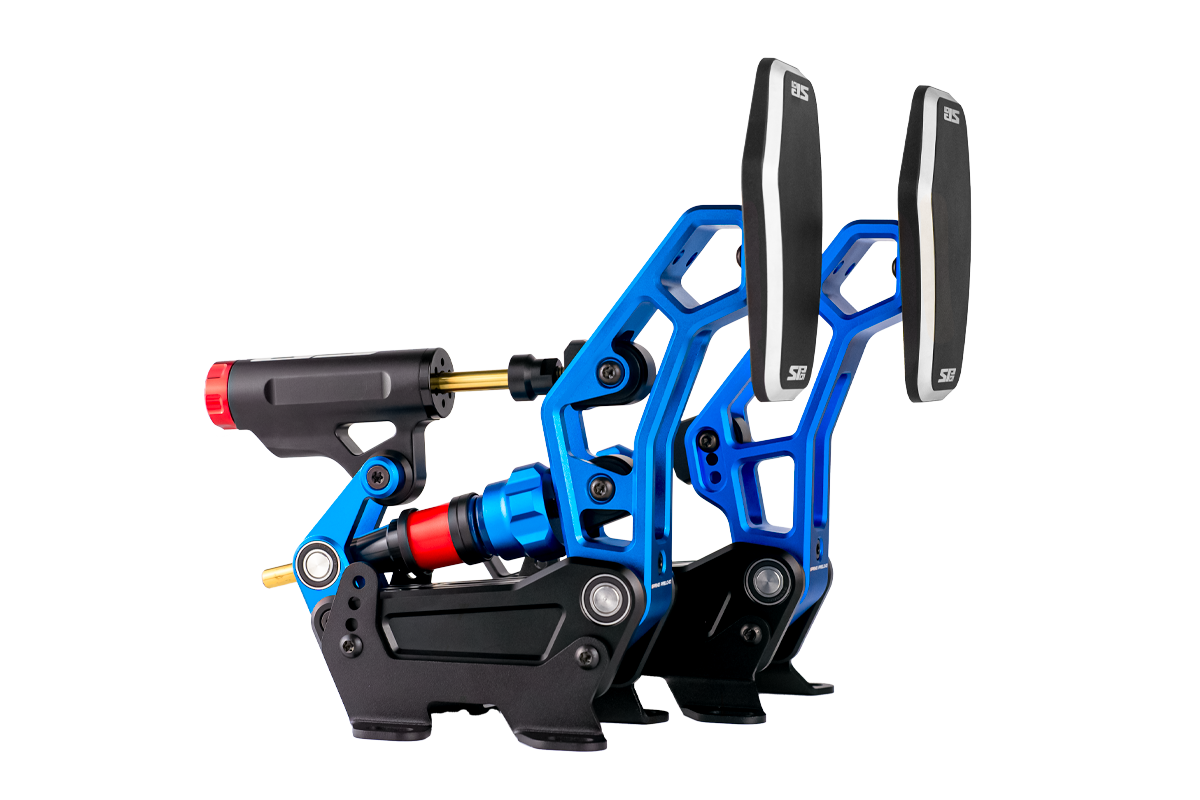

SP01 Pedal Set
The Cube Controls SP01 sim racing pedals have been made to the usual Cube Controls high standards, featuring a load cell brake pedal that can take a force of up to 200kg. The main structure of the pedals are CNC machined out of 6061 and 7075 aluminium and finished in a blue anodise. The brake pedal features a hydraulic damper and a load cell that accurately measures the pressure put on the pedal.
Available with a GT or Formula style pedal plates
200kg load cell sensor
Precision press fit ball bearings on all pivot points for smooth movement
Custom brackets with adjustable main pedal body
Throttle Pedal
The pedal has a 16 bit resolution hall sensor with a USB-C connector for connection to the main control electronics. The throw of the pedal can be adjusted by the dedicated knob that is positioned on the main shaft. The main shaft is made with high wear resistant plating and the spring preload adjustment is positioned for ease of adjustment. The pedal plate on the Formula style pedal is made from 100% carbon fibre where as the GT pedal plate is made from die-cast.
Brake Pedal
The pedal has a 16 bit resolution sensor that is able to take a force of up to 200kg. Fitted with a custom designed hydraulic damper that has 8 preload settings to provide a smooth action. The brake pedal is installed with springs and rubber damper compression elements that can be changed to suit the drivers requirements. The elastomers available are: soft yellow, medium red, hard blue that can be change to obtain the perfect resistance.
Software
Cube Controls propriety software will enable you to fine tune the brake and throttle pedals and make endless adjustments for the perfect set up. In the software you can make your very own custom pedal curves and save them them as a file.
What's in the box: SP01 throttle pedal, SP01 brake pedal, USB-C connection cable, brake extension cable, throttle mounting bracket (light, left, right), brake mounting bracket (heavy, left, right), additional blue spring, additional elastomer kit (soft yellow, medium red, hard blue), additional throttle spacer, TC25 L key, HEX4mm L key, 8mm wrench, 8x M5x10 button TX screws (black) 9x M8x20 button head hex screws (silver), 8x M8 nuts
